Electrical Testers for Enamelled Wire – High Precision
Electronical Test Equipment
We offer a range of electrical test equipment for evaluating the electrical properties and performance of enamelled wire. Testing enamelled wire used in electrical circuits and systems is essential to ensure safety, reliability, and compliance with relevant standards. This is crucial for the safety, functionality, and lifespan of the end products.
Please look at DSE's electrical test equipment offerings and do not hesitate to contact us for further information.

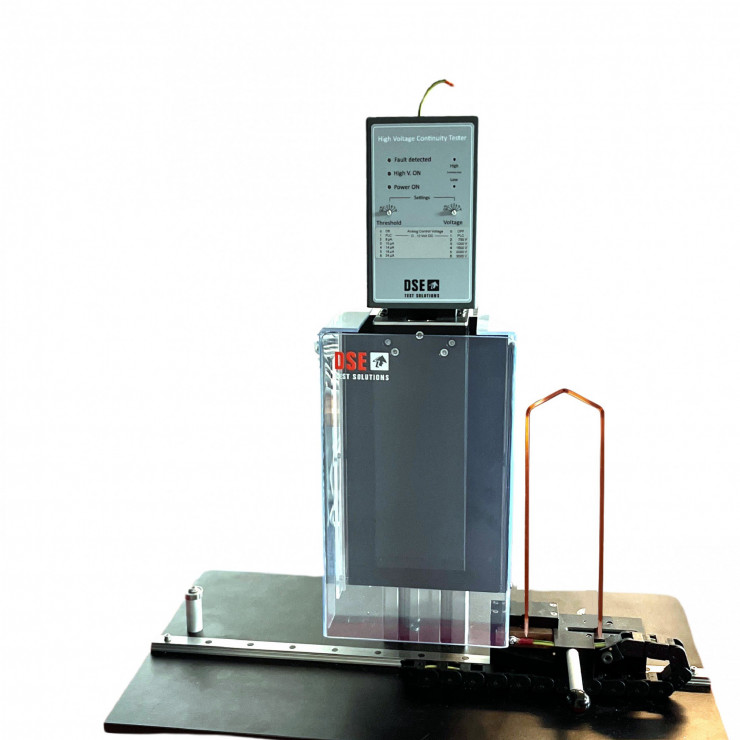

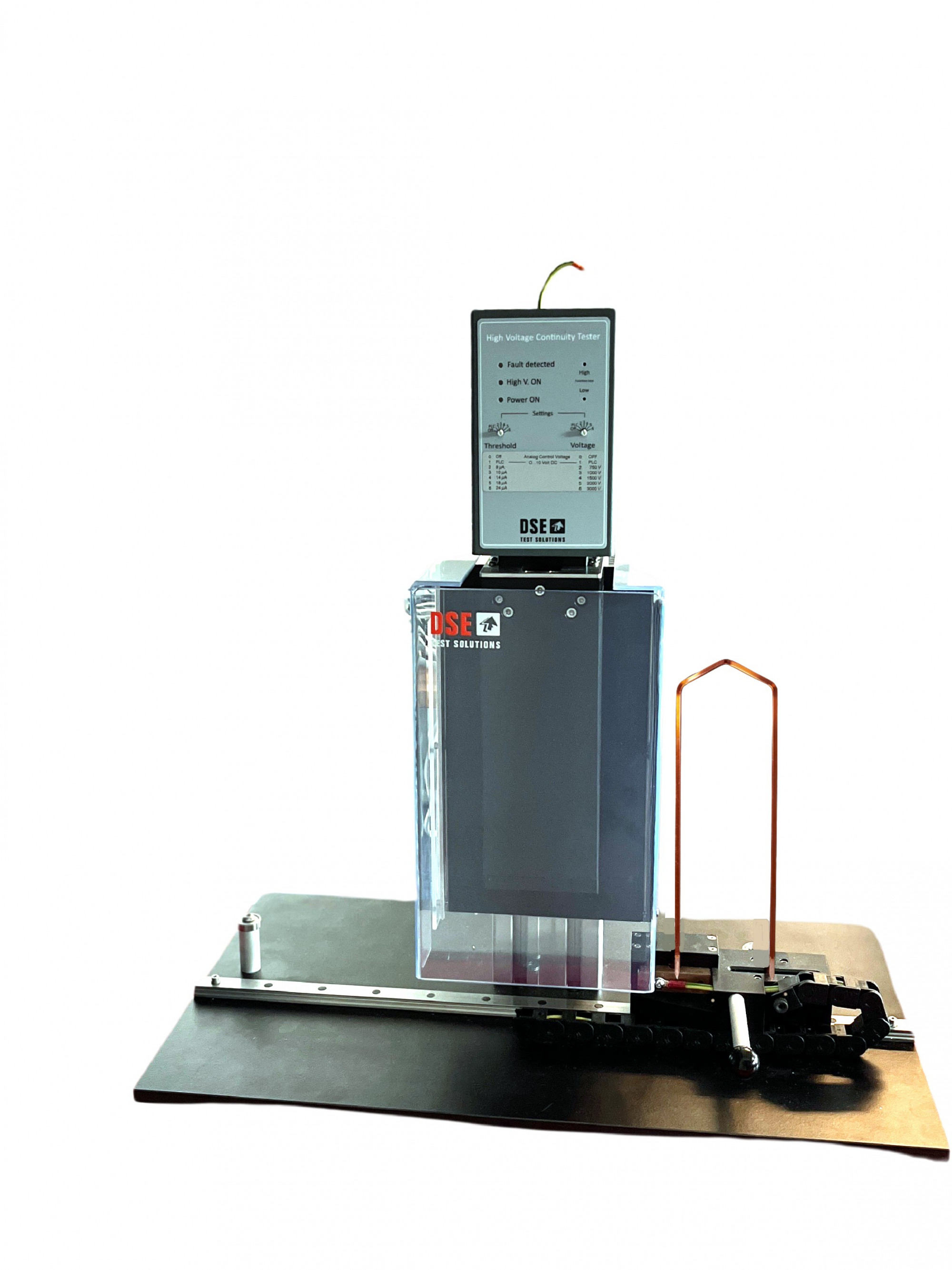

High Voltage Continuity Testers
A voltage generator must provide the electrode with a continuous filtered voltage without transients.

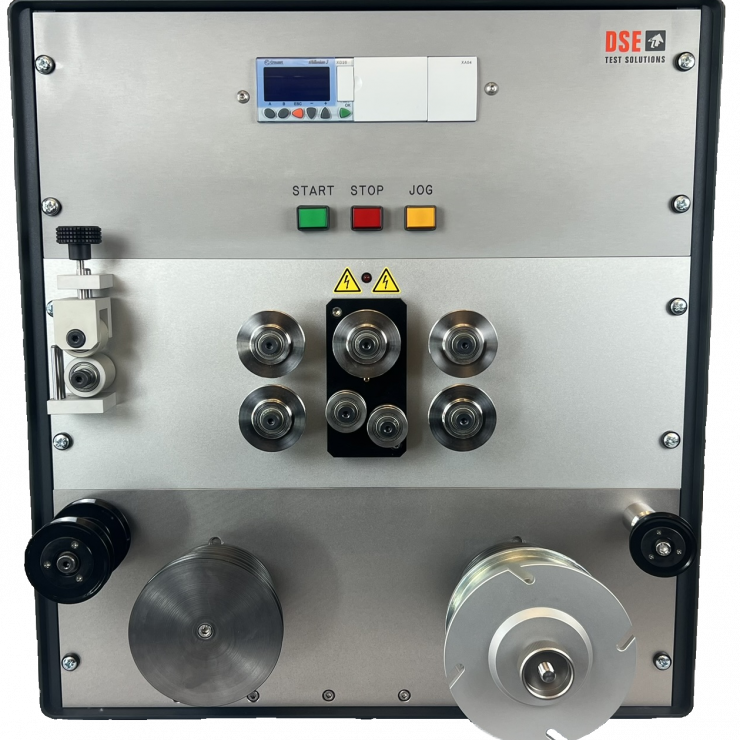

HVT, HVT-GS High voltage continuity tester
Electrical Resistance Testers
The wire's resistance shall be expressed as the directional current resistance at 20°C. Suitable for wire diameters up to 3.15 mm (8 AWG).
Find details in datasheet
Pulse Dielectic Testers
The enamelled wire used in asynchronous motors driven by inverters suffers from relevant electrical and thermal stress due to the resulting sine waveform applied.
PDT, PDT1 Pulse dielectric tester
Transposed Cable Fault Finders
Short circuits are formed between adjacent strips, generally caused by the a strip former hammer or by metal particles pressed by the stranding machine.
Find details in datasheet

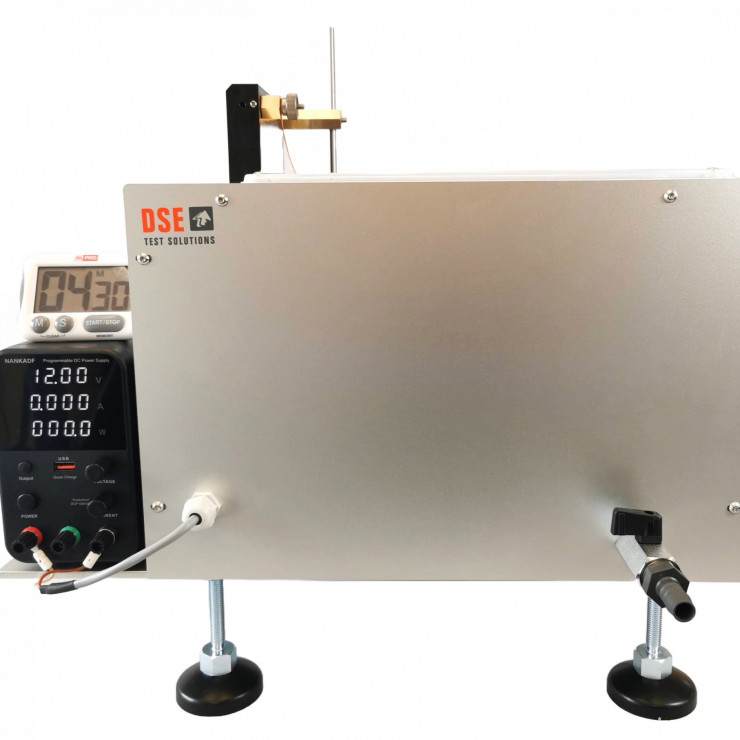

Pinhole Testers
Based on sodium chloride aqueous solution, added with the proper quantity of alcohol solution of 3% phenolphthalein.
Find details in datasheet

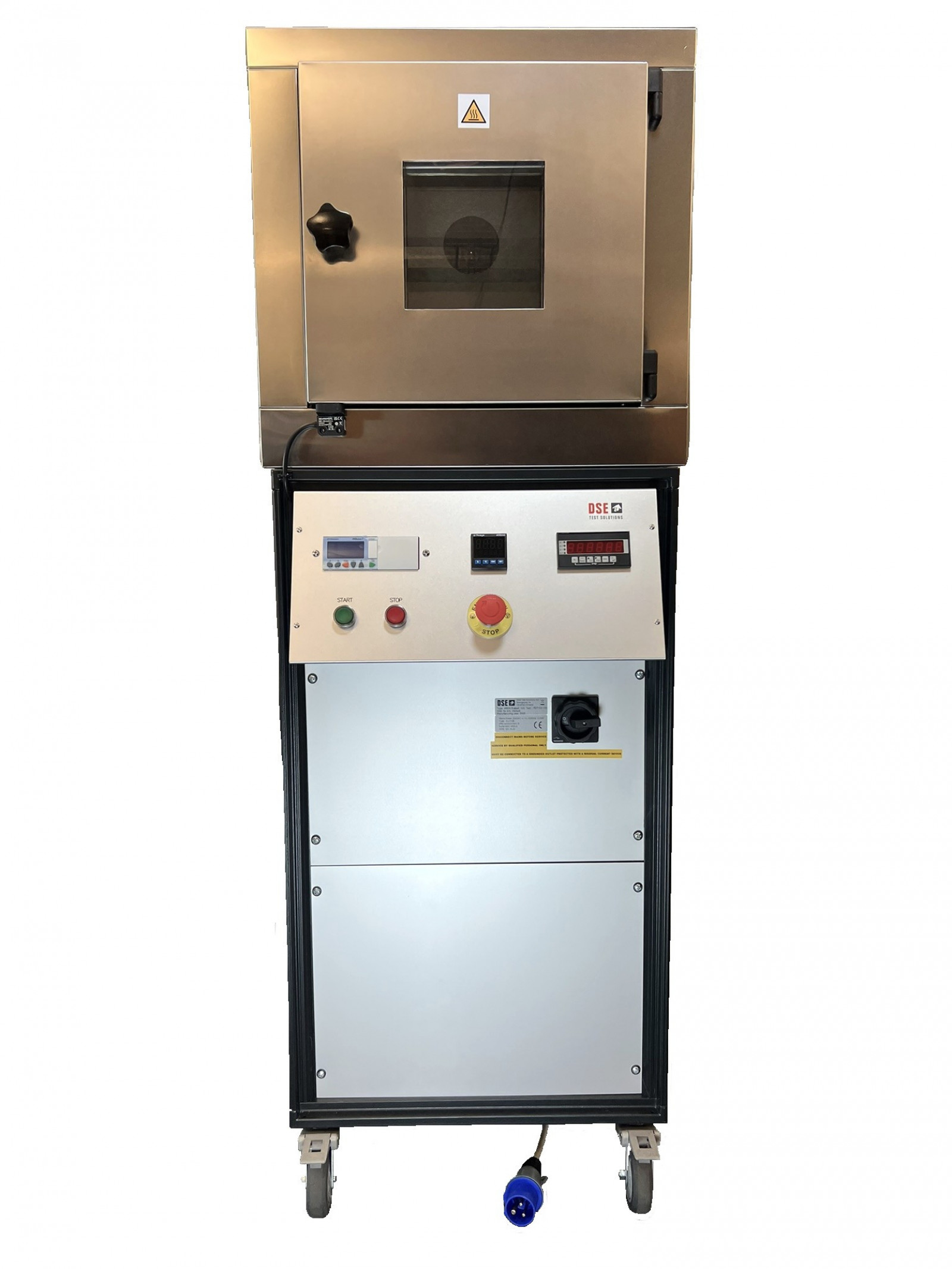

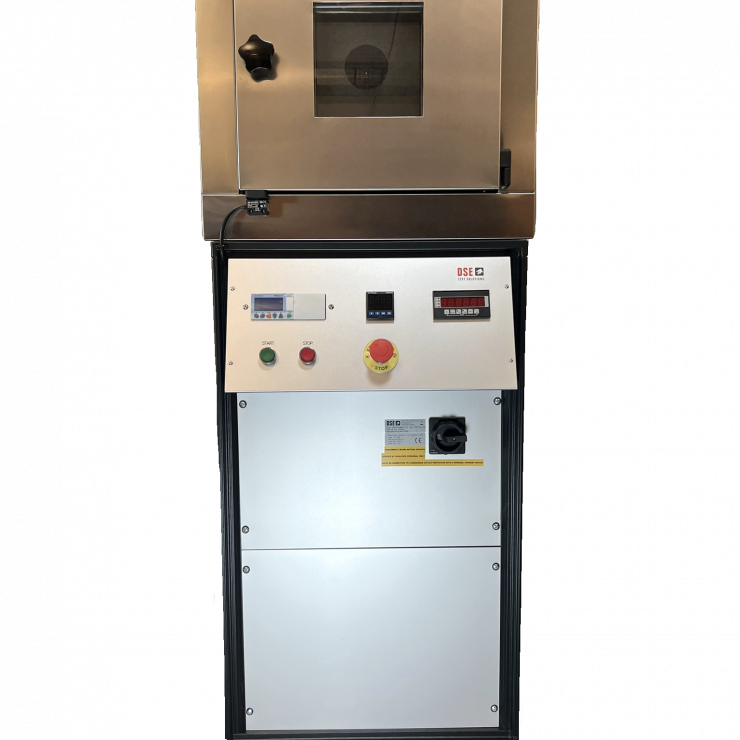

Breakdown Voltage Testers
Wire diameter from 0.025 to 8 mm (50–0 AWG), and strip up to 50x8 mm.
Read more

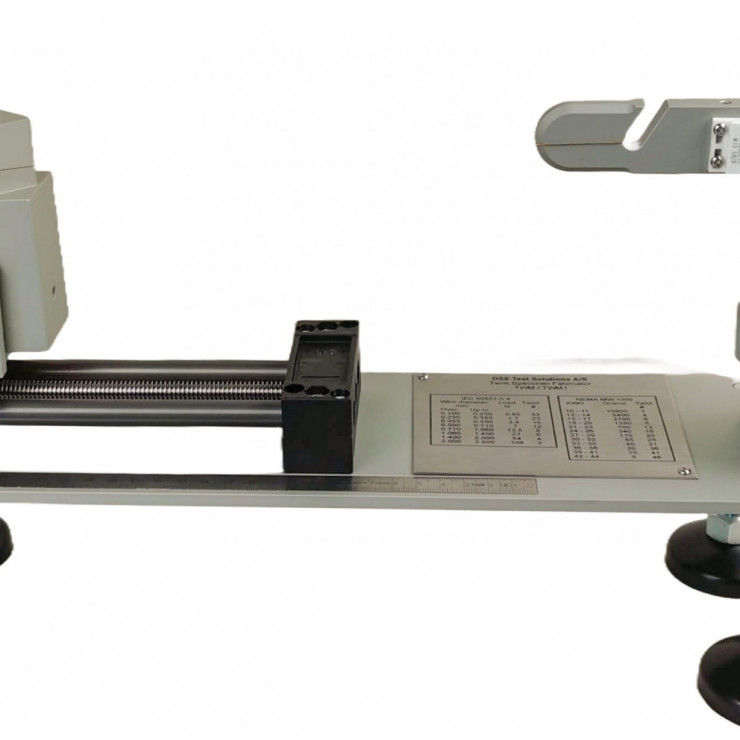

Twist Specimen Fabricators
Wire diameter from 0.051 to 2.6 mm (44-10 AWG)
Find details in datasheet
If you want a Tangent Delta for Curing Control, please click here, or are you looking for test equipment to monitor the quality of the wire isolation, please have a look at our HVC tester
Please contact our sales department for more information.
